Firefly with Istio demo steps

This document can be used as quick evaluation guide that showcases how CyberArk WorkLoad Identity Issuer easily integrates with Istio service-mesh.

Warning

This document is currently a working draft and assumes some knowledge of Kubernetes. There my some inaccuracies and errors. It is intended to provide Information Security and platform teams with a quick overview for integrating CyberArk's Workload Identitiy Issuer with 'cert-managerandIstio` service-mesh. It is NOT intended to be used for production purposes.

kubectl config use-context kind-demo-cluster-istio-doc-testing
kubectl config get-contexts

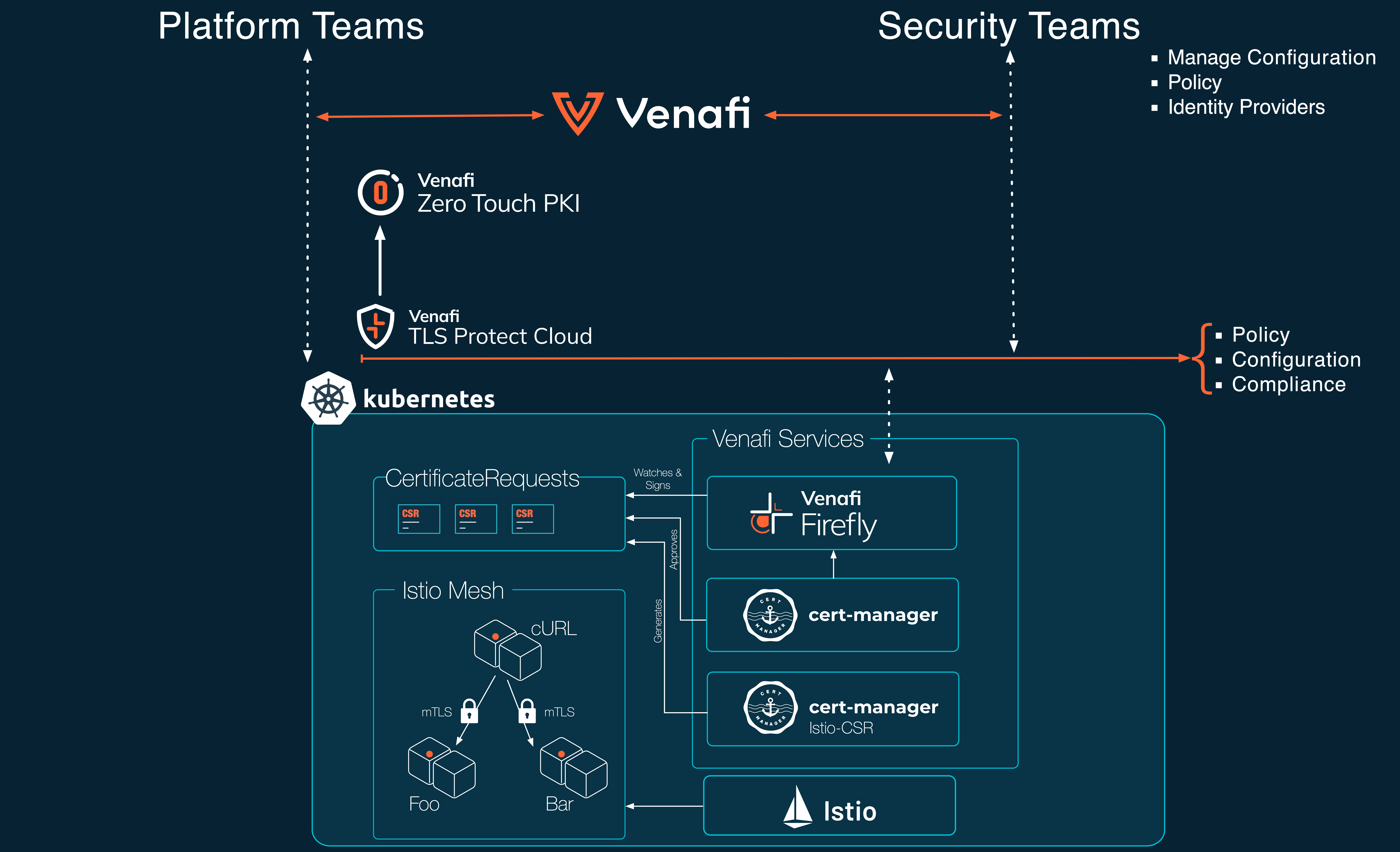

Architecture

Prerequisites

To complete this quick-start you will need to ensure that the following utilities are installed:

  • venctl A CLI tool that enables interaction with CyberArk Certificate Manager from the command line. You can install it from here: https://docs.venafi.cloud/vaas/venctl/t-venctl-install/
  • jq A lightweight CLI tool and flexible command-line JSON processor. You can install it from here: https://jqlang.org
  • cmctl A command line tool that can help you manage cert-manager and its resources inside your cluster. You can install it from here: https://cert-manager.io/docs/reference/cmctl/#installation

Lets create a new Kubernetes cluster. You can use KIND.

Step 1. Create the cluster (Optional)

kind create cluster --name kind-demo-cluster-istio-demo

Step 2. Get cluster information (Optional)

kubectl cluster-info

Step 3. Install cert-manager

# Install cert-manager
kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.12.0/cert-manager.yaml

Step 4. Create a new Venafi namespace

# Create Venafi namespace
kubectl create ns venafi

Step 5. Get the trust bundle and store it as a Kubernetes generic secret

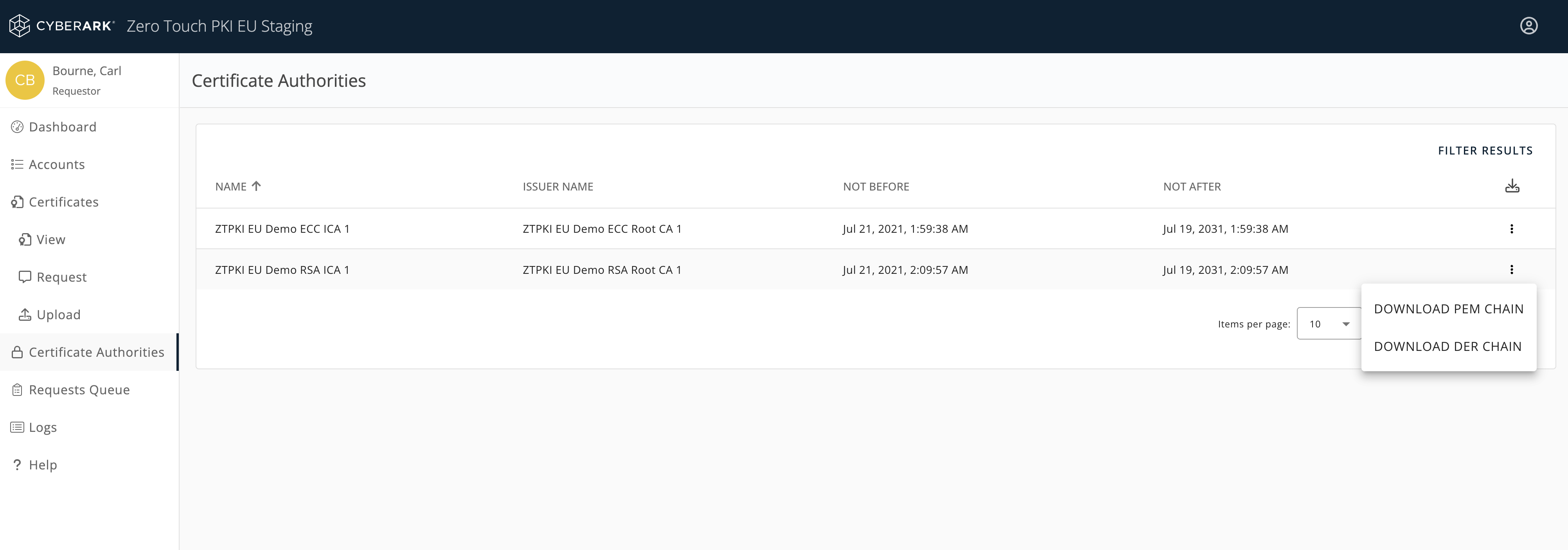

Login in to your're ZTPKI instance and get download the PEM chain for your CA.

kubectl create secret generic -n cert-manager root-cert --from-file={replace with pem chain filename}

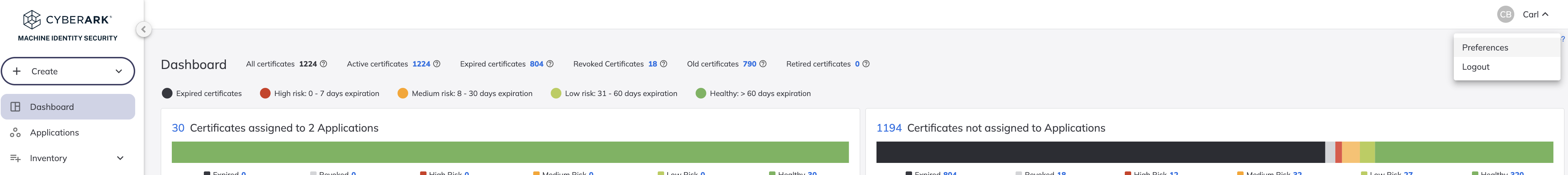

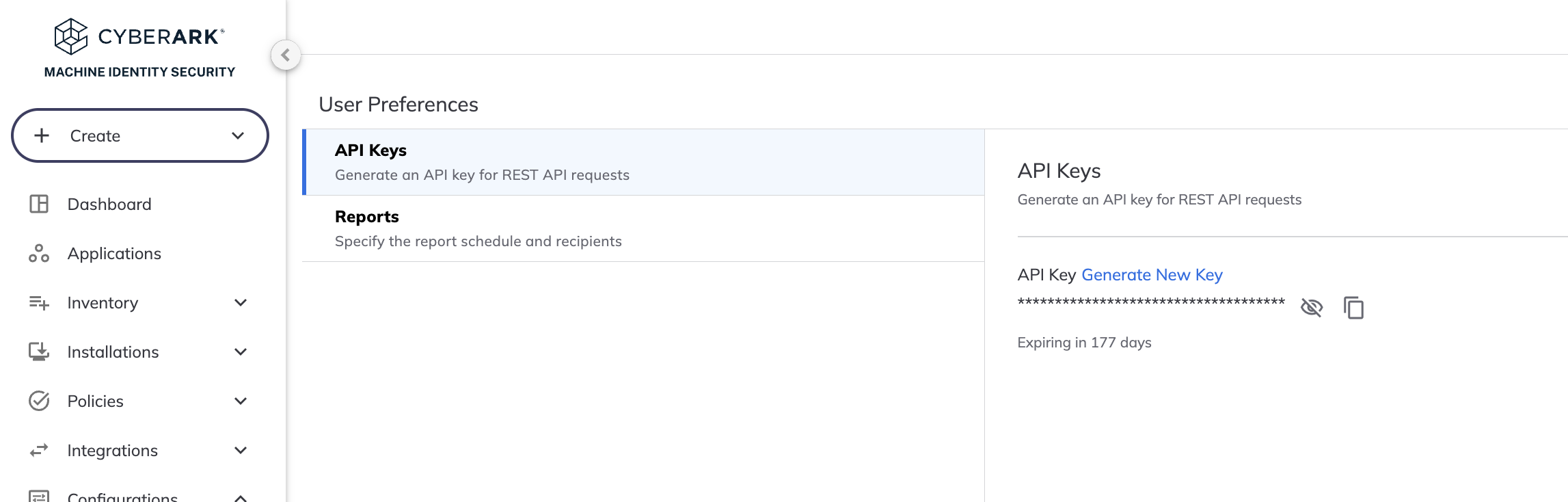

Step 6 Get an API Key and create an environment variable

export API_KEY= {paste api key from above}

Step 7. Create a new Venafi Service Account

$(venctl iam service-accounts firefly create --name sa-firefly-1 --api-key $API_KEY --output json --output-file venafi-sa-creds.json  )

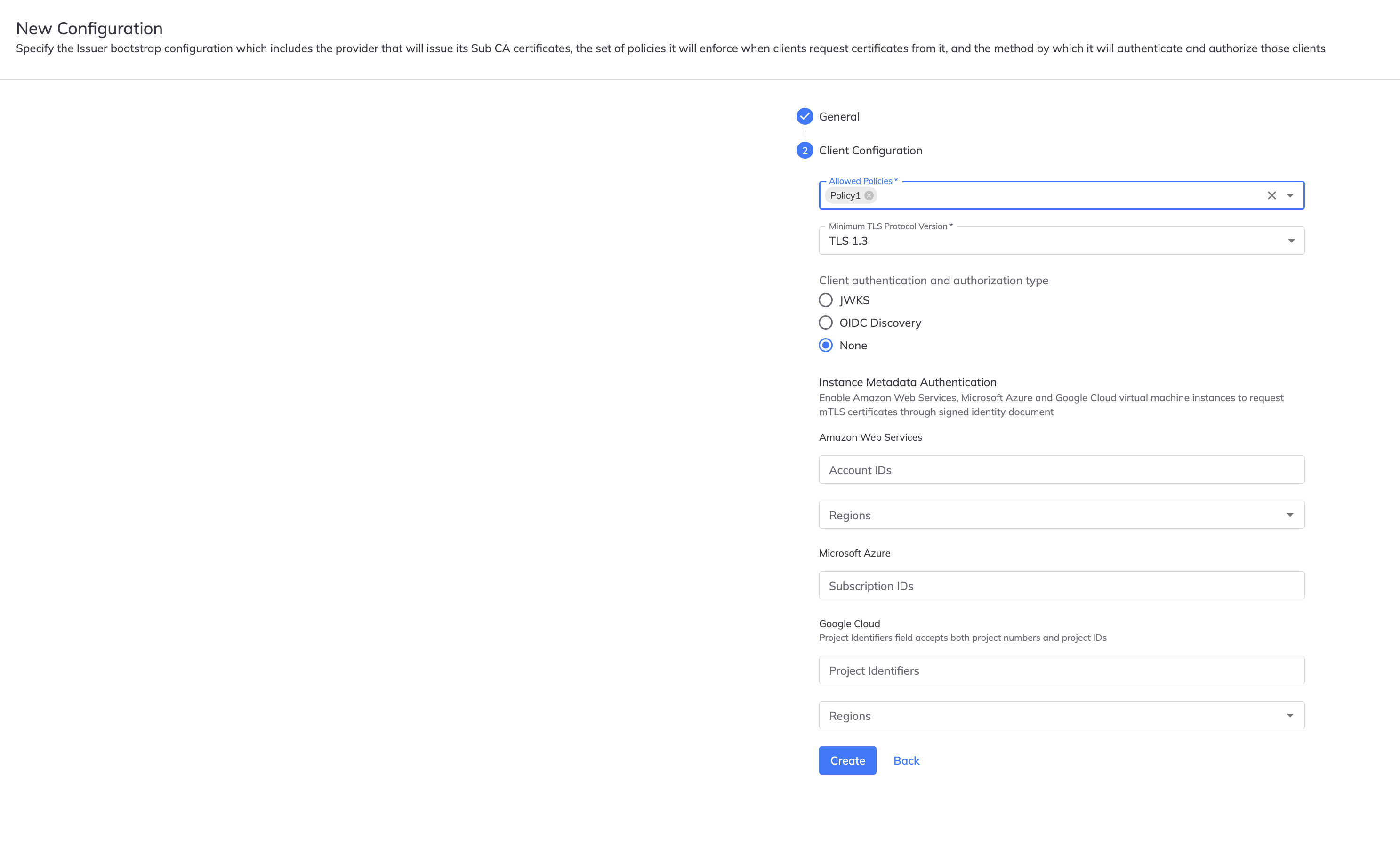

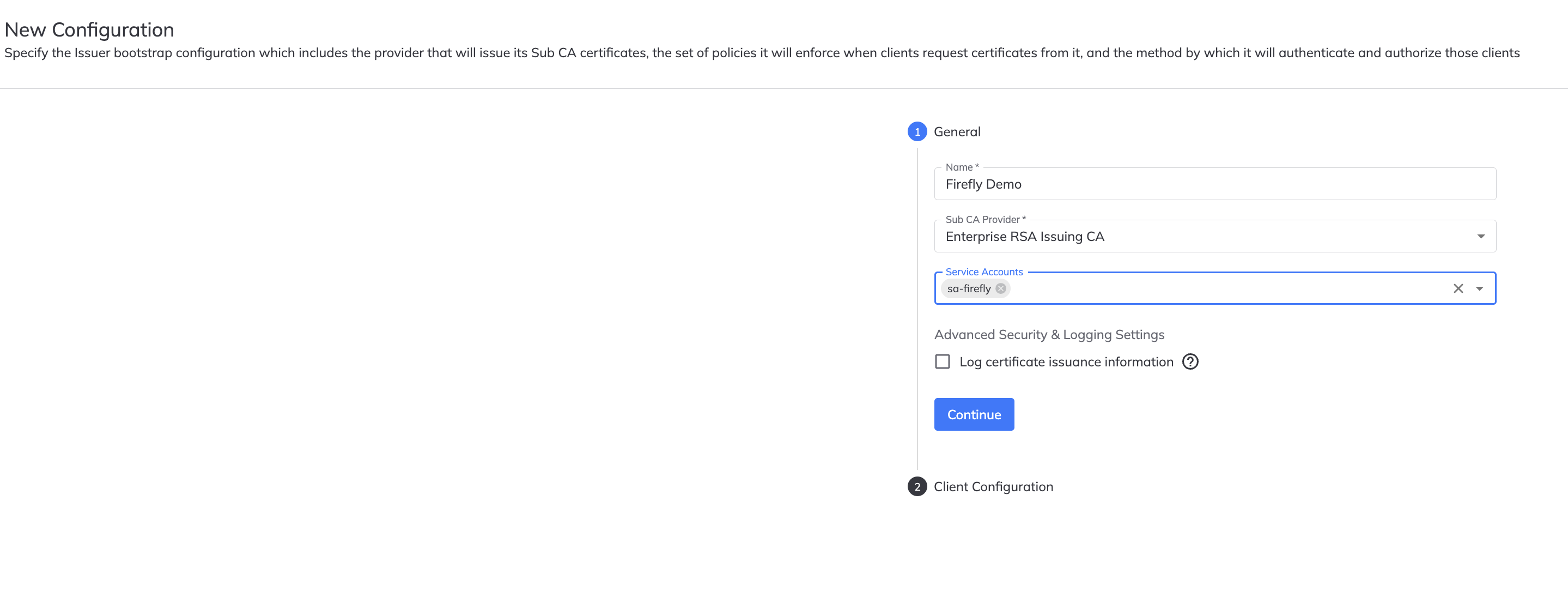

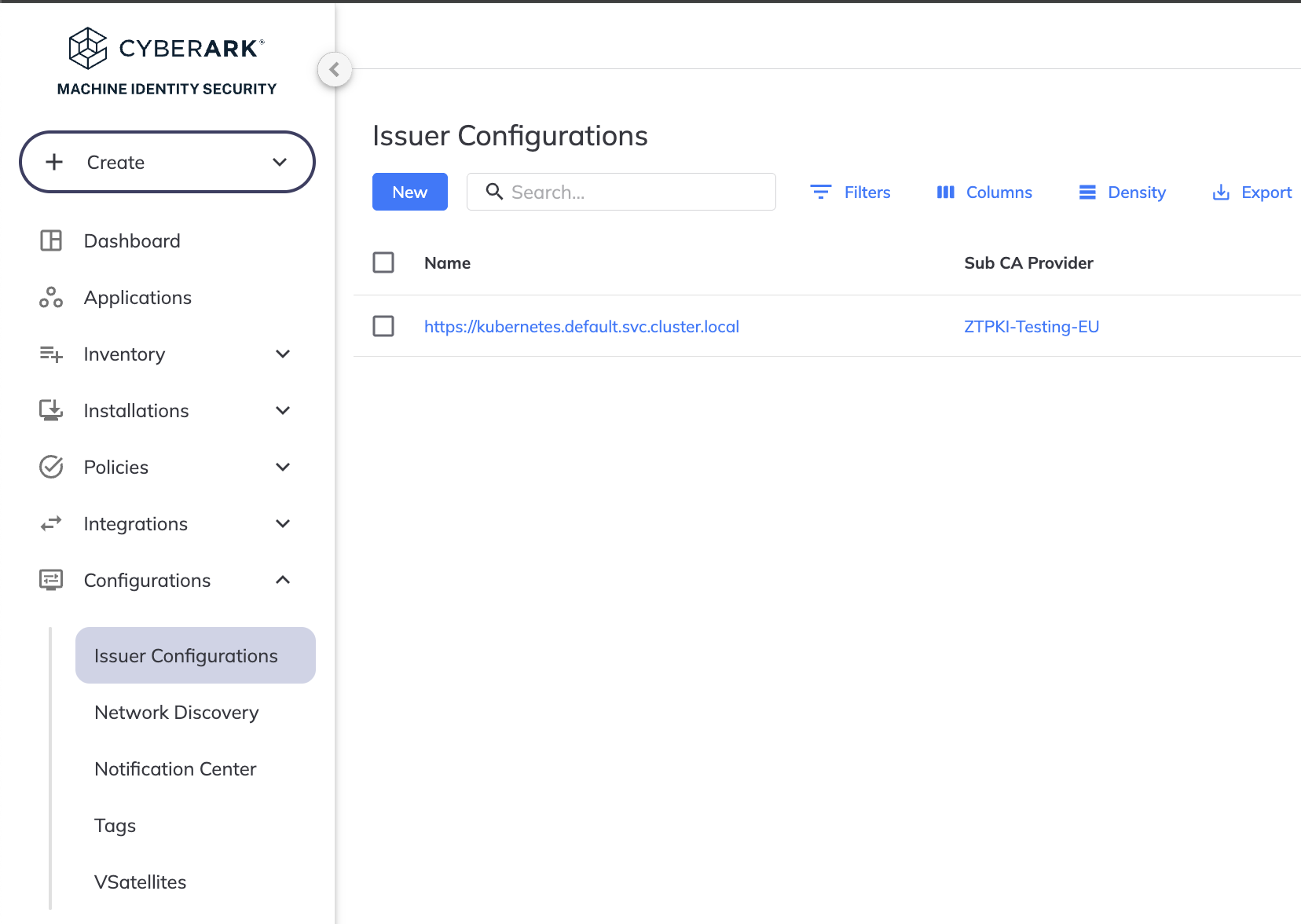

Step 8 Create a new Firefly configuration

Step 9. Store the private key for the TLSPC service account as a generic secret

kubectl apply -f - <<EOF
apiVersion: v1
kind: Secret
metadata:
  name: venafi-credentials
  namespace: venafi
type: Generic
stringData:
  svc-acct.key: $(cat venafi-sa-creds.json | jq '.. | select(.private_key?).private_key')
EOF

Step 10. Install Firefly using a Helm chart

helm upgrade prod oci://registry.venafi.cloud/public/venafi-images/helm/firefly \
  --set-string deployment.venafiClientID=$(cat venafi-sa-creds.json | jq '.. | select(.client_id?).client_id') \
  --install \
  --create-namespace \
  --namespace venafi \
  --values firefly-values.yaml \
  --version v1.5.1

Step 11. Test Firefly using the cmctl command line

cmctl create certificaterequest my-cr-test1 --from-certificate-file - --fetch-certificate  <<EOF
  kind: Certificate
  apiVersion: cert-manager.io/v1
  metadata:
    annotations:
      #firefly.venafi.com/policy-name: istio-mtls-certs
      firefly.venafi.com/policy-name: Firefly Playground
  spec:
    secretName: example-com-tls
    commonName: srvc.acme.com
    issuerRef:
      name: firefly
      kind: Issuer
      group: firefly.venafi.com
EOF

Step 12. Create a new namespace for Istio

kubectl create ns istio-system

Step 13. Install Istio-CSR using Helm

helm upgrade -i -n cert-manager cert-manager-istio-csr jetstack/cert-manager-istio-csr -f - <<EOF
replicaCount: 3
image:
  repository: quay.io/jetstack/cert-manager-istio-csr
  tag: v0.14.0
  pullPolicy: IfNotPresent
app:
  certmanager:
    namespace: istio-system
    preserveCertificateRequests: true
    additionalAnnotations:
    - name: firefly.venafi.com/policy-name
      value: istio-mtls-certs
    issuer:
      group: firefly.venafi.com
      kind: Issuer
      name: firefly-istio
  tls:
    trustDomain: cluster.local
    certificateDNSNames:
    # Name used by the e2e client
    - istio-csr.cert-manager.svc
    # Name used within the demo cluster
    - cert-manager-istio-csr.cert-manager.svc
    rootCAFile: /etc/tls/root-cert.pem
  server:
    maxCertificateDuration: 1440m
    serving:
      address: 0.0.0.0
      port: 6443
# -- Optional extra volumes. Useful for mounting custom root CAs
volumes:
- name: root-ca
  secret:
    secretName: root-cert

# -- Optional extra volume mounts. Useful for mounting custom root CAs
volumeMounts:
- name: root-ca
  mountPath: /etc/tls
EOF

Step 14. Install Istio

istioctl install -y -f - <<EOF
# istio-config.yaml
apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
metadata:
  namespace: istio-system
spec:
  profile: "demo"
  hub: gcr.io/istio-release
  meshConfig:
    # Change the following line to configure the trust domain of the Istio cluster.
    trustDomain: cluster.local
  values:
    global:
      # Change certificate provider to cert-manager istio agent for istio agent
      caAddress: cert-manager-istio-csr.cert-manager.svc:443
  components:
    pilot:
      k8s:
        env:
          # Disable istiod CA Sever functionality
        - name: ENABLE_CA_SERVER
          value: "false"
        overlays:
        - apiVersion: apps/v1
          kind: Deployment
          name: istiod
          patches:

            # Mount istiod serving and webhook certificate from Secret mount
          - path: spec.template.spec.containers.[name:discovery].args[-1]
            value: "--tlsCertFile=/etc/cert-manager/tls/tls.crt"
          - path: spec.template.spec.containers.[name:discovery].args[-1]
            value: "--tlsKeyFile=/etc/cert-manager/tls/tls.key"
          - path: spec.template.spec.containers.[name:discovery].args[-1]
            value: "--caCertFile=/etc/cert-manager/ca/root-cert.pem"

          - path: spec.template.spec.containers.[name:discovery].volumeMounts[-1]
            value:
              name: cert-manager
              mountPath: "/etc/cert-manager/tls"
              readOnly: true
          - path: spec.template.spec.containers.[name:discovery].volumeMounts[-1]
            value:
              name: ca-root-cert
              mountPath: "/etc/cert-manager/ca"
              readOnly: true

          - path: spec.template.spec.volumes[-1]
            value:
              name: cert-manager
              secret:
                secretName: istiod-tls
          - path: spec.template.spec.volumes[-1]
            value:
              name: ca-root-cert
              configMap:
                defaultMode: 420
                name: istio-ca-root-cert
EOF

Step 15. Create a namespace and enable side-car injection

kubectl create ns bar
kubectl label namespace bar istio-injection=enabled

Step 16. Install a demo App

echo "apiVersion: v1
kind: ServiceAccount
metadata:
  name: httpbin
---
apiVersion: v1
kind: Service
metadata:
  name: httpbin
  labels:
    app: httpbin
    service: httpbin
spec:
  ports:
  - name: http
    port: 8000
    targetPort: 8080
  selector:
    app: httpbin
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: httpbin
spec:
  replicas: 1
  selector:
    matchLabels:
      app: httpbin
      version: v1
  template:
    metadata:
      labels:
        app: httpbin
        version: v1
    spec:
      serviceAccountName: httpbin
      containers:
      - image: docker.io/mccutchen/go-httpbin:v2.15.0
        imagePullPolicy: IfNotPresent
        name: httpbin
        ports:
        - containerPort: 8080" > httpbin.yaml
kubectl apply -n bar -f <(istioctl kube-inject -f httpbin.yaml )

Step 17. Inspect the Secret

istioctl pc secret  $(kubectl get pod -n bar -l app=httpbin -o jsonpath={.items..metadata.name}) \
    -n bar -o json | \
    jq -r '.dynamicActiveSecrets[0].secret.tlsCertificate.certificateChain.inlineBytes' | \
    base64 --decode
